Live-Edit Workflow

Reflex's killer feature for rapid UI development.

The Two-Window System

When running in Debug mode, Reflex opens two windows:

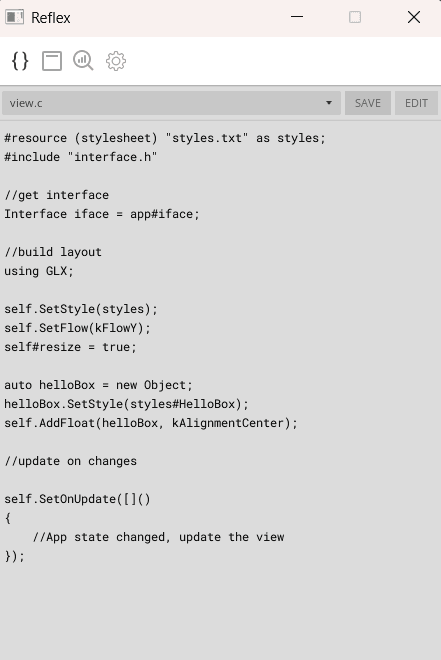

Editor Window with code tabs and save controls

Editor Window - Edit VM files with live code editor

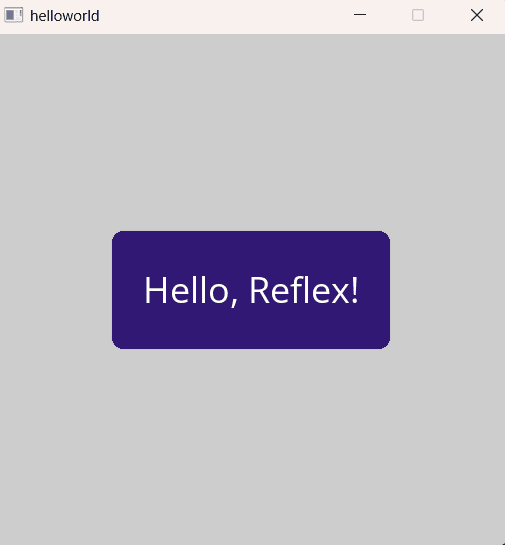

Preview Window - Your running application updates instantly

Files You Can Live-Edit

File	What Changes	Reload Speed
styles.txt	Colors, sizes, fonts, animations	< 100ms
view.c	UI structure, layout, interactions	< 500ms
main.c	State management, interface impl	< 500ms
interface.h	VM ↔ C++ bridge definitions	< 500ms

Files That Require Rebuild

File	Why
app.cpp	C++ compiled code
view.cpp	C++ compiled code
entry.cpp	C++ compiled code
Any .h file (except interface.h)	C++ headers

Effective Live-Edit Workflow

1. Start with Styling

Begin by defining your visual design in styles.txt:

/* Iterate on colors, sizes, fonts */
Card: {
    size: 200, 150;
    margin: 8;
    bg: Fill(colour: 255; corner: 8);  /* Try different values! */
};

Save frequently. Each save updates the preview.

2. Build Structure in view.c

Once styling feels right, build your layout:

auto card = Init(new, styles#Card);
self.AddInline(card);
/* Add children, adjust layout */
auto title = Init(new, styles#Title);
card.AddInline(title);

3. Add Interactions

Wire up behavior:

card.SetOnClick([]() {
    Print("Card clicked!");
});

4. Move Complex Logic to C++

When interactions become complex, migrate to C++:

/* view.c — Simple delegation */
card.SetOnClick([]() {
    iface.OnCardSelected(cardIndex);
});
// app.cpp — Complex logic
void OnCardSelected(Int32 index) override
{
    // Validation, data updates, network calls, etc.
    m_selected_card = index;
    SaveToDatabase();
    Notify(true);
}

Keyboard Shortcuts

Action	Windows	macOS
Save current file	Ctrl+S	⌘S
Reopen editor windows	Ctrl+Shift+D	⌘+Shift+D
Force reload all	Ctrl+Shift+R	⌘+Shift+R

Troubleshooting Live-Edit

Changes not appearing?

Ensure you saved the file (look for the save indicator)
Check the console for syntax errors
Try Ctrl+Shift+R to force reload

Syntax error in VM code?

The preview shows the last working state
Check the Editor window's console output for error details
Fix the error and save again

Preview window closed?

Press Ctrl+Shift+D to reopen
Or restart the debug session

Ready to dive deeper?

Learn about the UI System to build complex interfaces with GLX.
